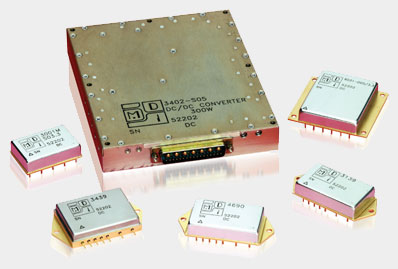

Modular Devices offers a standard line of military dc-dc converters for COTS and military applications. They provide a product line of Mil-STD 810 power converters from 2.5 watts to 80 watts. MDI offers two space grades for their Mil-Std 1275 DC-DC converter that utilize “H” or “K” class components. They several options for their standard military power converter line including solder welded or seam welded hybrid power converter packaging.

Their standard product offering consists of a variety of high efficiency DC-DC converters that incorporates a MIL-STD-461 EMI filter for each module.

Military Features

Meets Mil-Std-704, 810, & 1275 Built-in EMI Input Filter Operating Temp Range: -55°C to +85°C High Efficiency

Standard Power: 2.5W, 5W, 6.5W, 10W, 20W, 30W, 40W, & 80W Converters

Standard Inputs: 12V, 28V, 50V, 70V, 100V, 120V, & 270V

Standard Outputs: 1.8Vdc to 48Vdc – Single, Dual and Triple Output Modules

Standard Features:

• Completely Self Contained Thick Film Hybrid DC-DC Converter
• No External Filter Caps Required
• Fully Isolated Design
• “Inhibit-not” Function
• Power on Soft Start
• 250 kHz Operation for Low Ripple & Fast Response Time
• Built-in EMI input filter meets MIL-STD-461C: CE01, CE03, CS01, CS02 & CS06
• Short Circuit & Overvoltage Protection
• External Sync Capability
• Standard operating temperature: -55°C to +85°C

Options:

Semi-custom and Custom Designs: Build to Specification or Build to Print
